4x7el FLA x-yagis for 50 MHz
fiberglass frame front plate
front frame almost finished
front frame ready
central plate of the back frame
triangles for antenna fixation
lifting the array on tower
finishing HF-cabeling
4x7el x-yagi FLA, central beam at 20m above ground
H and V phasing lines
tracking the moon
survived 101 km/h storm without any damage (February 2020)
our 3 EME antennas

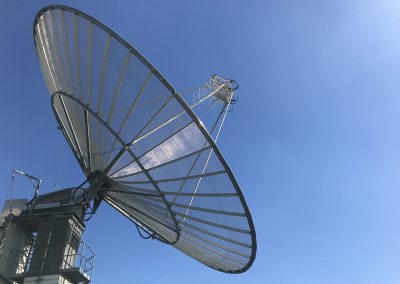

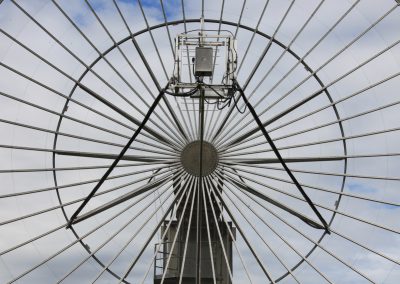

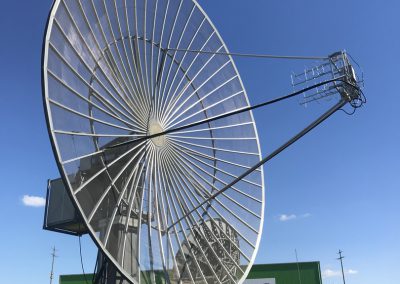

15.28m mesh dish for 144 and 432 MHz
mesh 8x8mm
all 144 and 432 MHz equipment is in the container

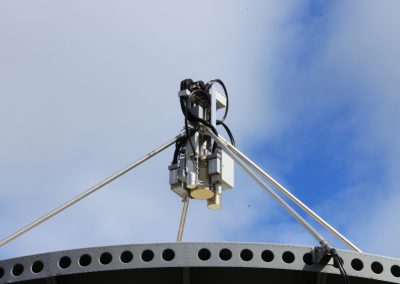

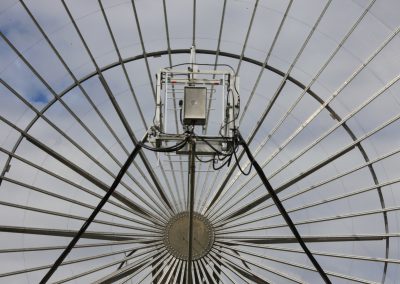

feeds for 144 and 432 MHz
144 MHz 2x4el horizontal & 2x4el vertical LFA yagis
432 MHz LFA 7el cross-yagi
all 144 and 432 MHz equipment is in the box behind dish
hydraulic azimuth and elevation gear
tracking the moon
tracking the moon

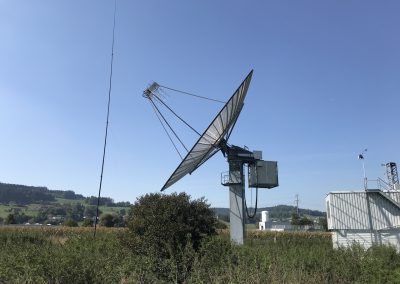

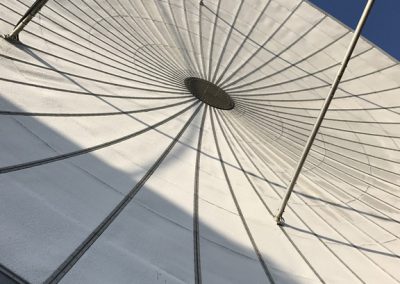

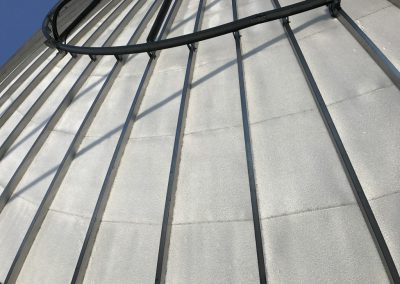

10m solid dish for 1296, 23xx, 3400, 5760 and 10xxx MHz

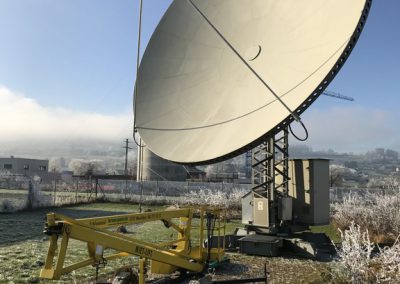

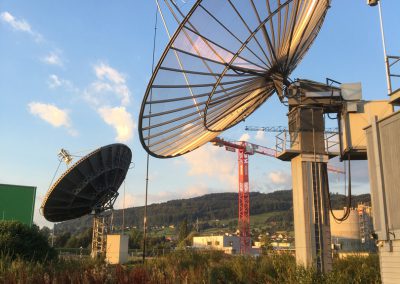

10m solid dish for UHF & SHF
pointing on sun
feeds for 1296, 23xx, 3400, 5760 and 10xxx MHz
all 1296, 23xx and 3400 MHz equipment is in box behind dish

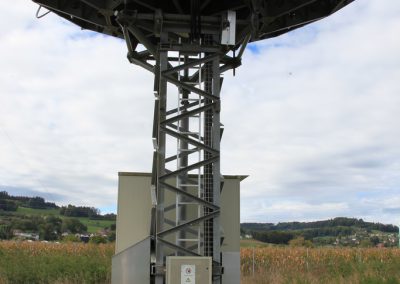

hydraulic azimuth and elevation gear moving with the tower
5-band-feed-cluster
left 10 GHz, right 5.76 GHz all equipment in the two boxes
top 3400 bottom 23xx MHz
Antenna Farm and Shack, including Shortwave

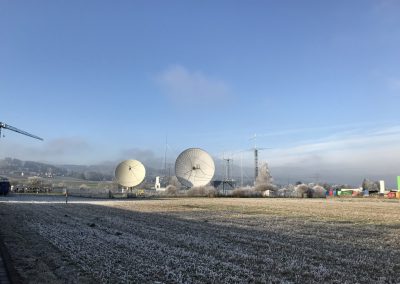

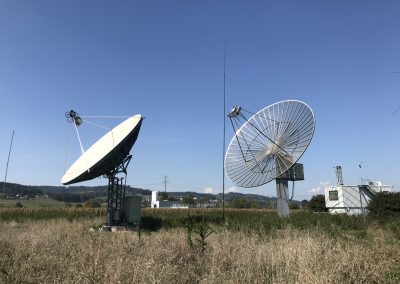

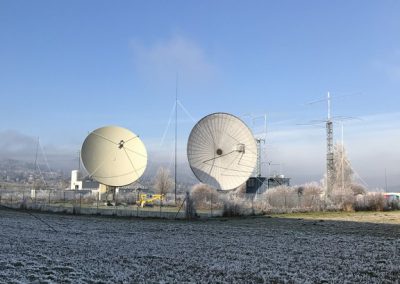

10m solid dish and 15.28m mesh dish

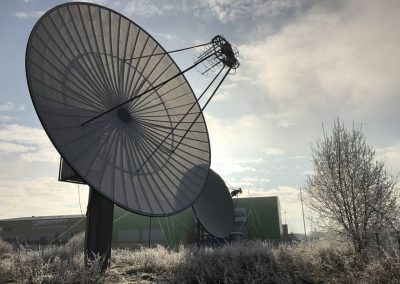

sunrise at HB9Q

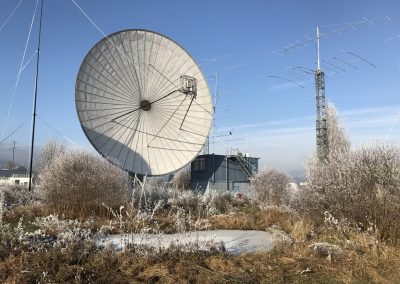

winter at HB9Q, frozen fog

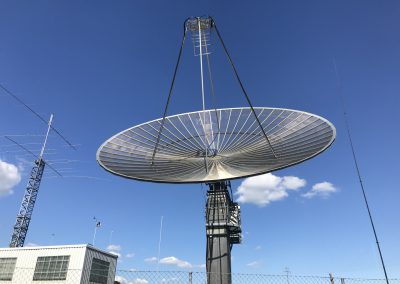

15.28m mesh dish with shack
upper floor operating room
ground floor workshop/storage
shack
shack
144 MHz operating position
432 MHz operating position
1296-10xxx MHz operating position
24m tower HF & 50 MHz
shortwave beam
50 MHz 11el 2.5wl yagi
horizontal electrical rotor HF & 50 MHz
Winter at HB9Q
winter at HB9Q, frozen fog
everything is covered with ice crystals
